The Mini 4K UHD from Amiko is a 4K UHD digital HEVC satellite receiver with a built-in Conax smart card reader and 12V connection. Due to its compact dimensions and external IR eye, the Mini 4KUHD is an ideal receiver for use in your camper, caravan, boat or truck and can be completely concealed in your interior, a very complete receiver for a competitive price.
Most important features
- With Conax built-in card reader
- 2 fast USB 2.0 connection support
- External infrastructure port
- Ethernet connection
- TimeShifting support
- Software upgrade via USB
- Digital audio bitstream via HD OUT
- MKV, AVI, MPG, MP4, TS, VOB, JPEG & MP3 playback support
- Low power consumption in standby
Tuner and demodulation
- Tuner type: DVB-S / DVB-S2
- Input connector: F-type, connector, female
- Signal level: -65 to -25 dBm
- LNB Power & Polarization: Vertical: + 13V / + 14V,
- Horizontal: +18V / +19V
- Current: Max. 400mA
- Overload protection
- 22 KHz Tone frequency: 22 ± 1 KHz
- DiSEqC Control: version 1.0, 1.1, 1.2, USALS
- Demodulation: QPSK, 8PSK
- Symbol rate input: 2-45 Mbps,
- FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto
MPEG TS A/V decoding
- Transport stream: MPEG-2, MPEG-4, H.264, H.265
- Input speed: max. 120 Mbit/s
- Aspect Radio: 4:3, 16:9, letterbox
- Video decoding: UHD 4K x 2K, HEVC / H.265, MPEG-4 / H.264 SP@L3 to ASP@L5, MP@ML, MP@HL, [email protected], [email protected]
- Video resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080p/i, 3840*2160p
- Audio decoding: AAC-LC, HE-AAC, LPCM, MP3, WMA, WAV
- Audio mode: Left / Right / Stereo / Mono
- Sampling frequency: 32, 44.1 and 48 kHz
System resources
- Main processor: 1000MHz
- Flash Memory: Serial Flash 8 MB x 1
- DDR RAM: DDRIII 1866 128 MBx2

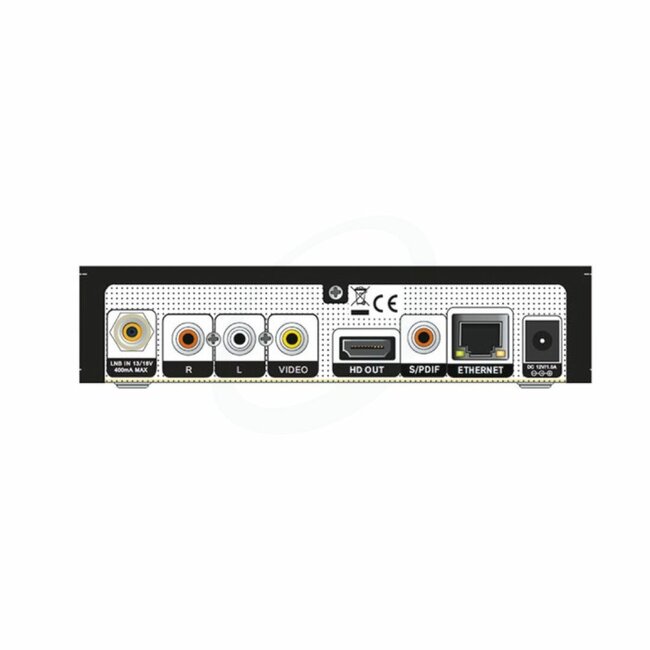

Connections
- Ethernet: 10 / 100M RJ45
- USB: Two USB 2.0 slots compatible
- Digital video output
- S/PDIF: Coaxial digital audio or Dolby Digital Bit Stream output
- SCART: (1-CVBS, 1-L/R, SL, FB) or RCA output
- IR: Jack type, external IR sensor connection
- RS232: Jack type, transfer rate 115.2 Kbps, 9-pin D-sub type
Other specifications
- Size [W * H * D]: 146mm * 110mm * 35mm
- Net weight: 0.25 kg
- Operation Temperature: 0°C ~ +45°C
- Storage temperature: -10°C ~ +70°C
- Storage humidity: 5% ~ 95% RH (non-condensing)
