CANAL   DIGITAAL  &    TV    VLAANDEREN   Suitable!

(only has a built-in card reader, no CI slot, only suitable for old smart cards)

Amiko Mira3 WiFi

The Amiko Mira 3 WiFi is a complete Full HD digital satellite receiver with a Multi Smartcard Reader and 12 Volt connection. The Amiko Mira has a fast Dual Core processor and a large Flash memory (64 MB). Due to its compact size and external IR sensor, the Amiko Mira is an ideal receiver for use in your camper, caravan, boat or truck and can be completely concealed in your interior.

Scart connection

With the Mira 3 WiFi you can also easily use an old TV using a scart cable.

Multi Smart Card Reader

Via the CI slot you have the option to activate the channels of M7, Joyne, Ziggo with a CI module from the provider. You can also work with the existing CanalDigitaal or Ziggo smart card, this is possible with the existing card reader that supports multicards.

Most important features

• A Conax Embedded Multi Smartcard Reader
• High Speed ​​USB 2.0 Connection Support
• SCARTSupport
• External infrastructure port
• Built-in Wi-Fi
• Time Shifting Support
• Software upgrade via USB
• MKV, AVI, MPG, MP4, TS, VOB, JPEG and MP3 Playback support
• Dolby Digital Bit Stream via HDMI
• 6000 channels (TV and Radio) programmable

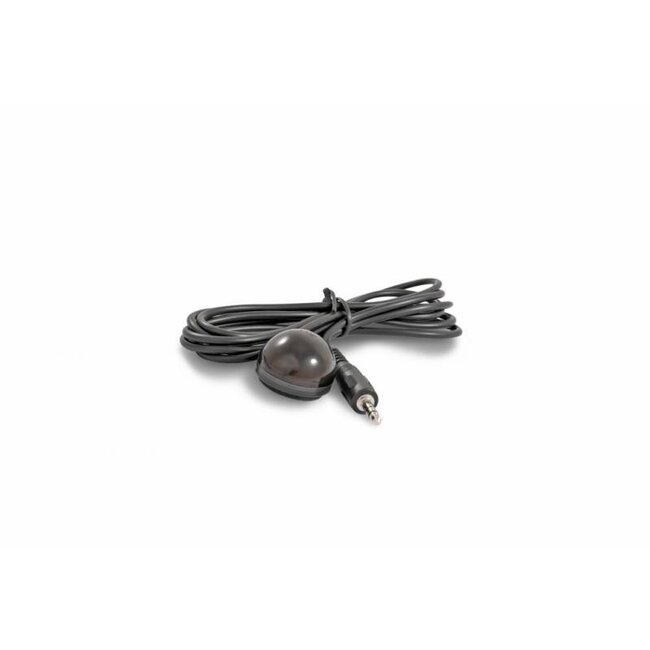

• External IR sensor (included in the package)
• IR Mounting on TV (sticker included in the package)
• DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
• Full HD (1080p) Output via HDMI
• Channel recording on external storage devices
• Timeshift support
• Channel Recording & Timeshifting Simultaneously (optional)
• Channel switching time less than 1 second
• True-color, user-friendly on-screen display (OSD)
• Full Picture In Graphic (PIG) ​​function
• Electronic Program Guide (EPG) for on-screen channel information
• Subtitles supported
• Teletext supported by VBI insertion and software emulation
• Parental lock facility per channel and program event
• Multi-language support

Technical specifications

Main Processor: Dual Core 650MHz
Flash Memory: 64MBits
DDR RAM: 1024Mbits
MPEG TS A/V decoding
Transport stream: MPEG-2, H.264
Input Speed: Max.120Mbit/s
Aspect radio: 4:3, 16:9, Letterbox
Video decoding: MPEG-2, MP@ML, MPEG-4 part 10 / H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
Audio decoding: MPEG-1 layer I / II, MPEG-2 layer II, Dolby digital
Audio mode: left / right / stereo / mono
Sampling rate: 32, 44.1 and 48KHz
Input voltage: 12V DC
Power consumption: 18W Max
Standby power consumption: <0.5W
Dimensions [W * H * D]: 144mm * 40mm * 110mm • Net weight: 0.25KG
Operation Temperature: 0°C ~ +45°C
Storage temperature: -10°C ~ +70°C
Storage humidity: 5% ~ 95% RH (non-condensing)

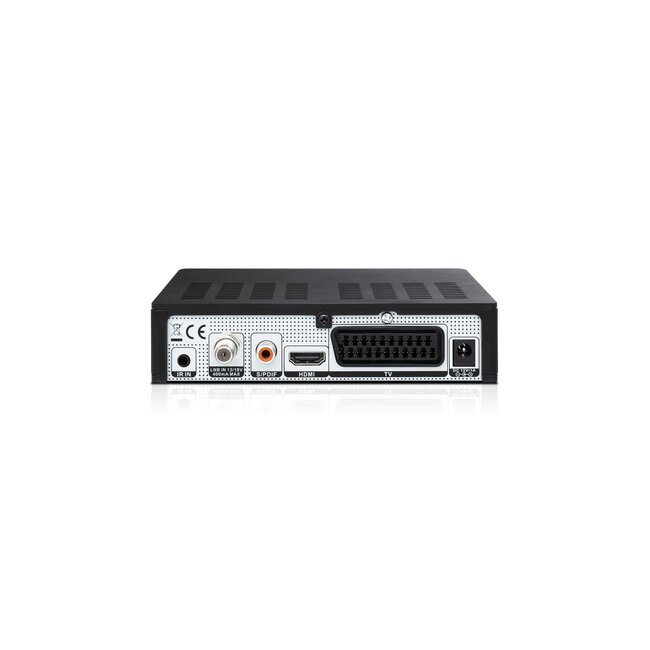

Connections

SCART: CVBS Video out / Audio L/R out
USB: 1* USB 2.0 slot
S/PDIF: Coaxial
HDMI: VER1.4, Type A
R Port: Internal & Jack Type

Contents of the package:

• User manual
• AC/DC adapter
• 2x Batteries

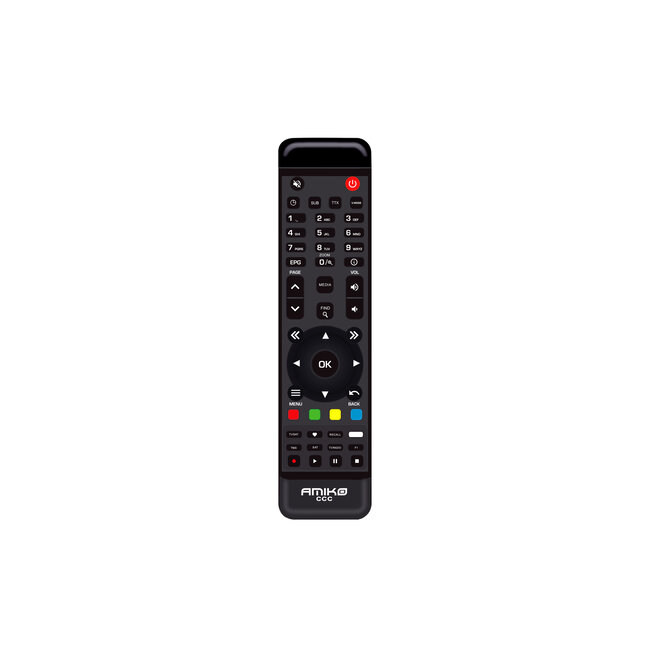

• Remote control
• Infrared eyelet
• Amiko Mira3 Wi-fi
