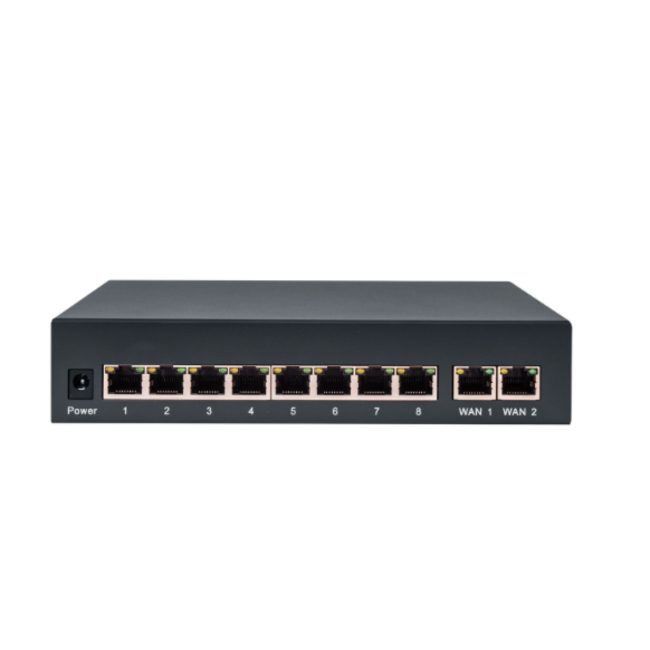

The Amiko HOME LS-TR812 POE switch is a high-quality Ethernet network switch designed for video security cameras, specifically developed to provide simple and easy security solutions for both indoor and outdoor use in your home or business.

The Ethernet network switch features 8 PoE ports, each capable of delivering a maximum of 30 Watts, with a total maximum power output of 120 Watts.

Key Features:

• 8 x 10/100M Ethernet ports with PoE support
• 2 x 10/100/1000M (Gigabit) Ethernet ports
• Support for IEEE802.3af & IEEE802.3at PoE protocols
• Up to 30W power per port
• Maximum combined power of 120W
• Automatic detection of powered devices
• Flow control for Full Duplex operation

Network Connections:

• Ports 1-8: 10/100M with PoE
• Ports 9-10 (WAN1/2): 10/100/1000M
• Transmission Distance: ~100m (max.)
• Transmission Medium: CAT5/5e/6 standard network cable

Network Switch Specifications:

• Network Standards: IEEE802.3/10 BASE-T Ethernet
• IEEE802.3/100 BASE-TX Ethernet
• IEEE802.3x Flow Control
• IEEE802.3az
• Maximum Frame Size: 1518 bytes
• MAC Address Table: 2K

Power over Ethernet (PoE):

• PoE Power Supply Type: End-span (1/2+, 3/6-)

Power Supply:

• Power Adapter Voltage: Input: 180-240V AC at 50/60Hz
• Output: DC 48V
• Power Consumption: 125W

Physical Specifications:

• Dimensions (WxDxH): 216.8mm x 159.6mm x 29.6mm
• Operating Temperature: 40ºC ~ 55ºC (5% - 95%)
• Storage Temperature: 20ºC ~ 70ºC
• Weight: 1230g
