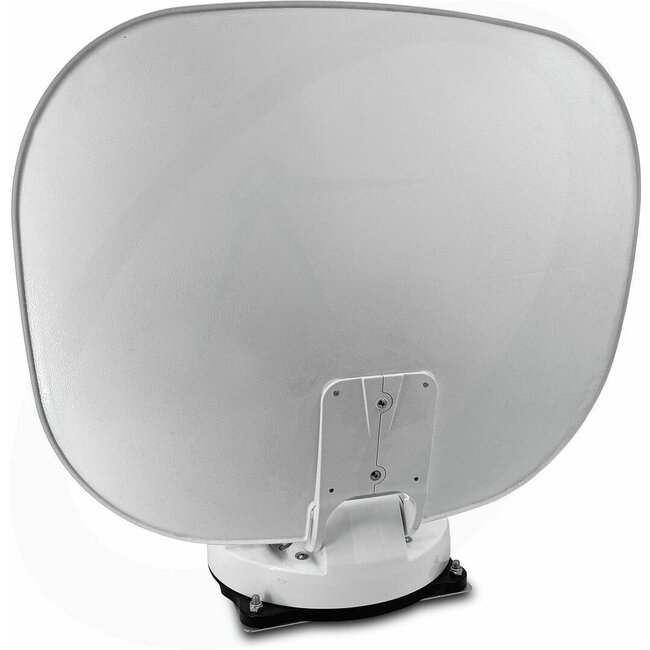

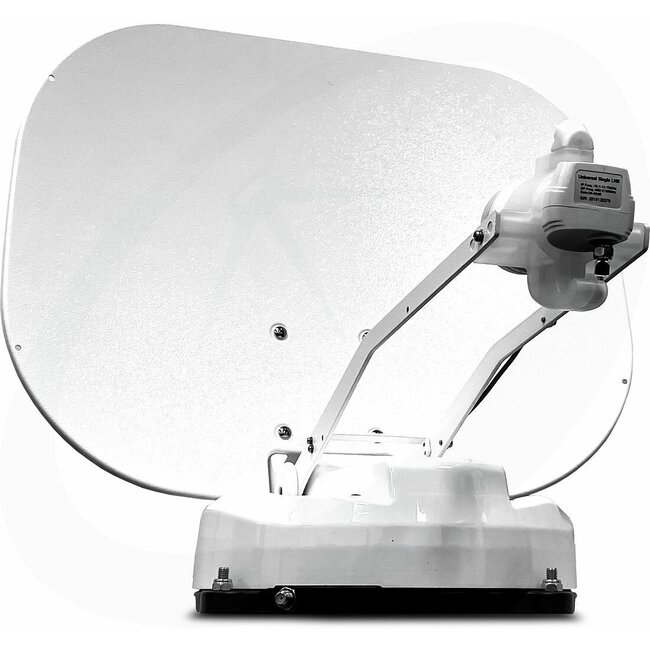

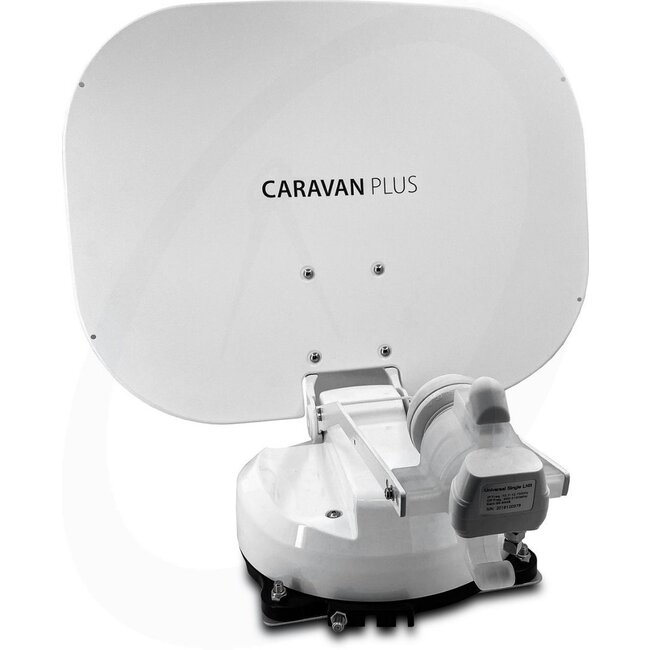

Selfsat Caravan Plus Single fully automatic satellite antenna incl. iOS / Android control

The Selfsat Caravan Plus is a very compact satellite antenna with the best reception performance. The special shape of the antenna enables high gain with small dimensions and wind load. Only 14.9 cm mounting height when retracted. Single connection for one participant. Control unit / PI box with free app for firmware updates and satellite selection. Suitable for fixed installation or optionally as a portable antenna.

Modern control via Bluetooth only requires an antenna cable in your vehicle. You can easily control your antenna with a smartphone app.

After switching on, the antenna automatically focuses on the Astra 19E satellite. However, you can also send the antenna to a different position within the pre-programmed satellites.

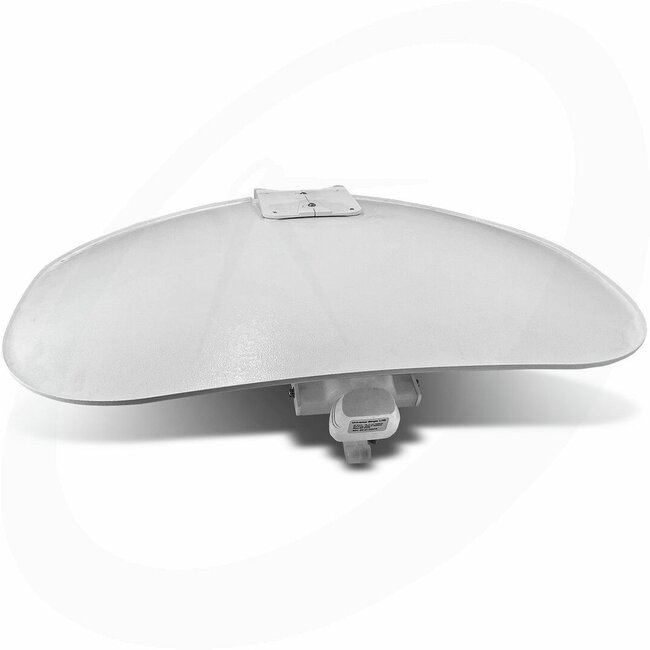

Low overall height: only 14.9 cm

Fully automatic alignment

BT remote control (optionally available as an accessory):

• All functions can be operated with the remote control
• Display with status display

Mobile App:

• Support all control functions
• firmware update
• Troubleshooting with self-diagnosis
• Antenna function status display
• iOS or Android

Single cable connection:

• Easy installation with just one coaxial cable without additional controller

Model:

• CARAVAN Plus Single

Connections:

• 1 (for 1 TV/receiver)

Antenna Gain:

• 35.0dBi @ 12.7GHz

Dimensions (WxDxH):

• 573 mm x 508 mm x 149 mm

Weight:

• 5,5 kg

Energy consumption:

• 11 W (normal use)
• 30W (during alignment)

Scope of supply:

• Fully automatic satellite antenna Caravan Plus
• Mounting plate for mounting e.g. on the roof of a mobile home
• Cigarette lighter cable
• Antenna cable (grey) 12m
• STB cable 1.5m

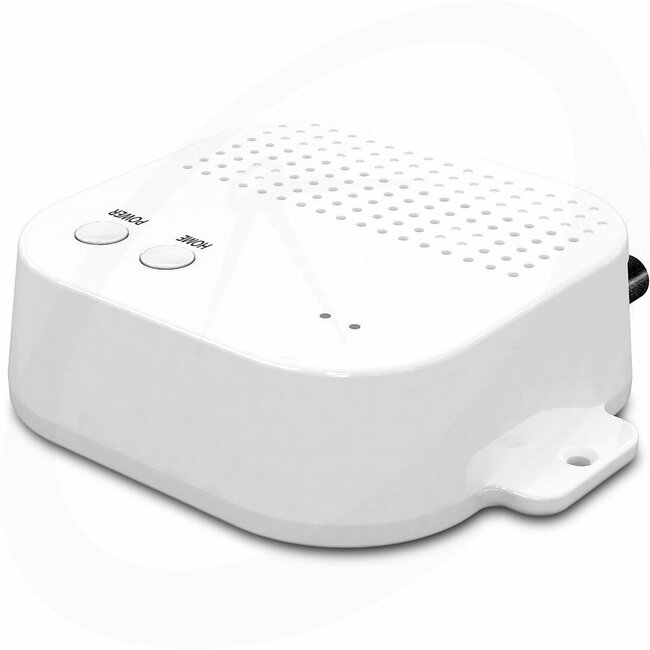

• IP-box
• cable holder
• cable gland
• mounting screws
• manual
