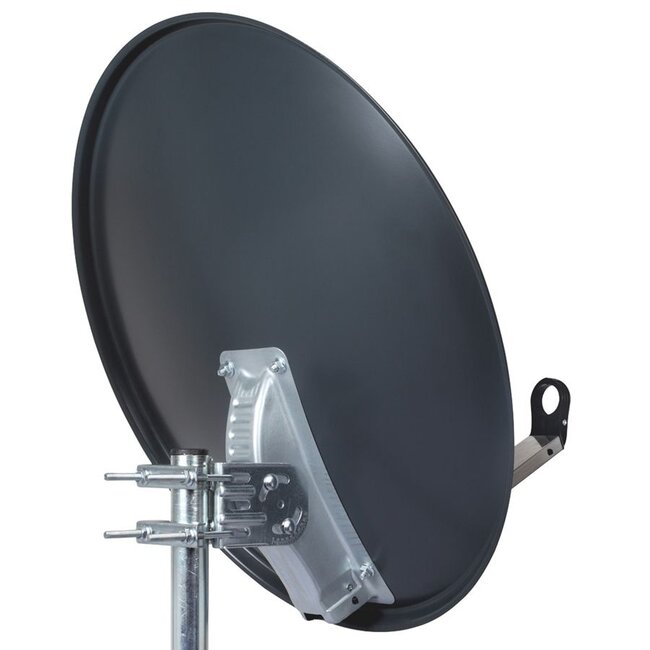

Triax TDS 65A is a hot-dip galvanized steel dish antenna with a diameter of 65 cm. The anthracite-colored dish is weather-resistant and, thanks to its integrated mast clamp, can be easily mounted on masts up to ⌀ 60 mm. Furthermore, the TDS 65A guarantees a strong signal due to its high gain.

This is the single pack Triax TDS 65A and therefore the replacement for the previous TDS 64 model.

• Material: galvanized steel (hot dip galvanized)
• Colour: anthracite (RAL7016)
• Arm color: unprocessed

• Elevation angle: 0-90°
• Offset angle: 26°
• F/D ratio: 0,62
• Frequency range: 10.7-12.75 GHz
• Gain
  • @ 11,7 GHz: 35 dBi
  • @ 10,70 GHz: 37 dBi
  • @ 12,75 GHz: 34 dBi

• LNB holder: 40 mm
• Weight: 3,220 kg
• Dimensions

  • Saucer (h x w): 66 x 60 cm
  • Packaging (h x w x d): 734 x 684 x ​​100 mm
