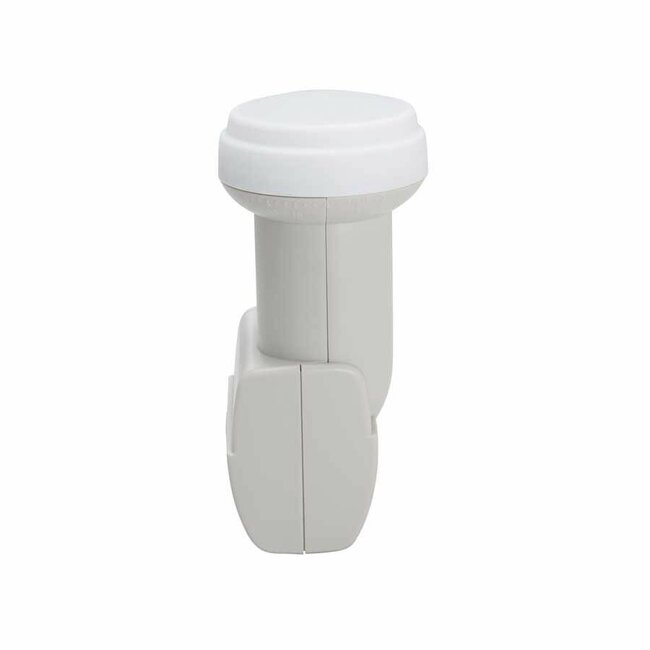

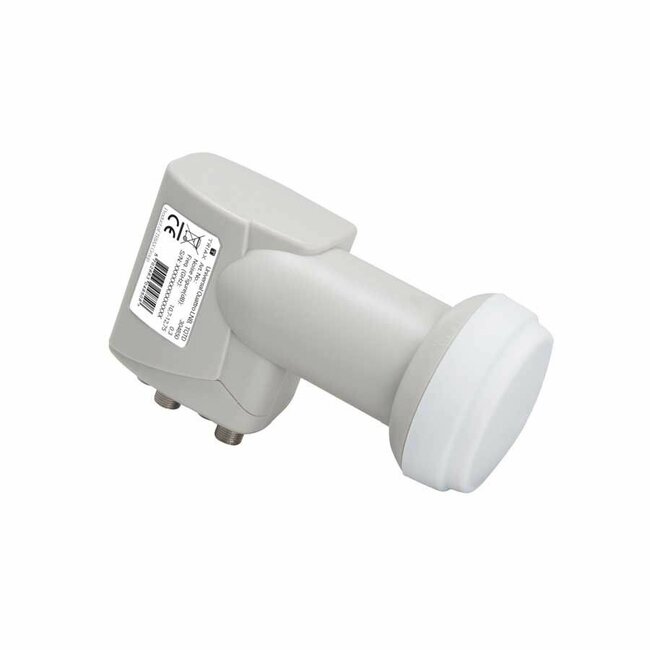

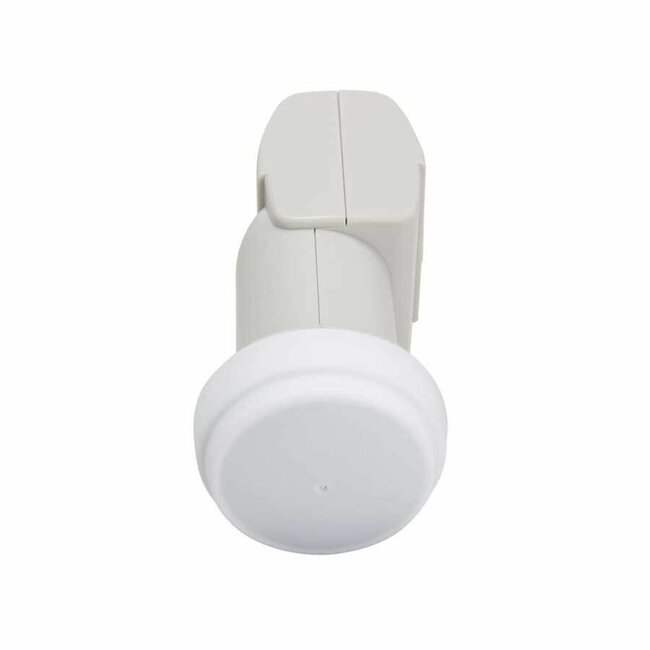

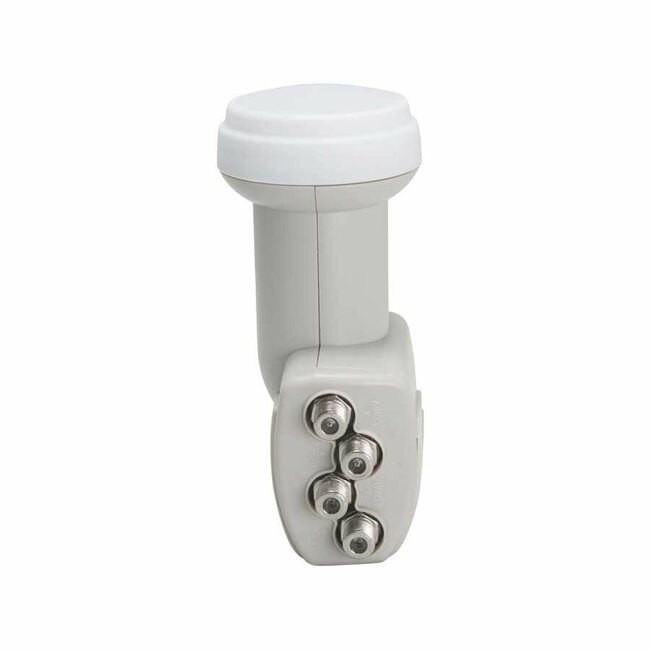

Triax TQTD Universal Quattro LNB 7035

The Triax TQTD is a 40 mm universal quattro LNB in RAL 7035 color.

Specifications: LNB Type: Quattro LNB Connector Type: F-connector Phase Noise 1 kHz (room temperature): -60 dBc/Hz Phase Noise 10 kHz (room temperature): -80 dBc/Hz Phase Noise 100 kHz (room temperature): -100 dBc/Hz Max. Spurious Level: -60 dBm Image Rejection (min.): 40 dB Feedhorn Diameter: Ø 40 mm Frequency Stability (-40 to +60 °C): ± 3 MHz Input Frequency Range (low band): 10.7-11.7 GHz Input Frequency Range (high band): 11.7-12.75 GHz Output Frequency Range (low band): 950-2150 MHz L.O. Frequency (low band): 9.75 GHz L.O. Frequency (high band): 10.6 GHz Average Gain Flatness (26 MHz segment): ± 5 dB Max. Conversion Gain: 55-65 dB Noise Figure (max.): 0.3 dB Average Cross-Polarization Isolation: 20 dB DC Operating Voltage Vertical: 10.5-14.5 VDC DC Operating Voltage Horizontal: 15.5-21.0 VDC DC Current Consumption: 195 mA Operating Temperature Range: -30 to +60 °C Color: RAL7035 (light gray) Dimensions (h x d x w): 136 x 59 x 83 mm Weight: 245 grams
