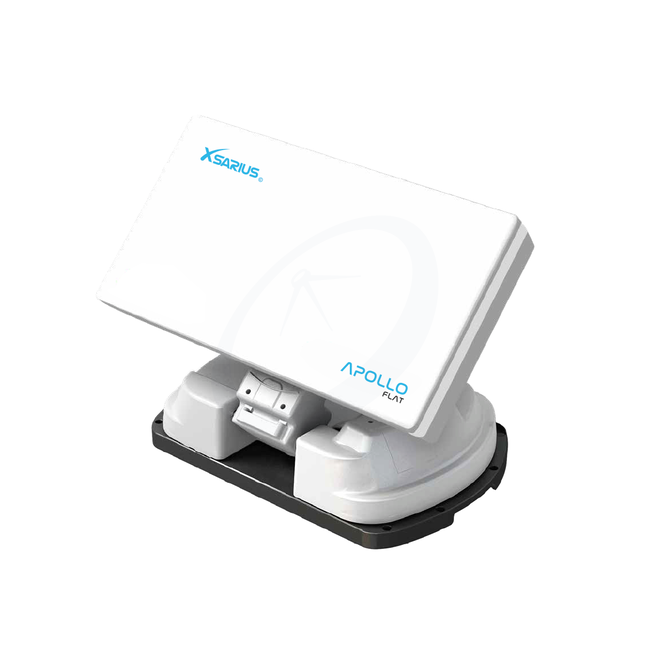

Xsarius introduces the innovative Xsarius Apollo Flat, the world's best and most compact fully automatic flat satellite dish antenna on the market. The Xsarius Apollo Flat features a highly powerful and silent motor, an innovative antenna locking and positioning system, and a carefully developed mechanism for a long lifespan.

Additionally, the Xsarius Apollo Flat comes with an extremely advanced controller that allows you to find the desired satellite with just one push of a button. The controller is innovatively designed with an LCD screen and a USB port.

The Xsarius Apollo Flat is equipped with the latest HD search technology, ensuring that you can lock onto satellites in the future. It uses three preprogrammed HD search frequencies per satellite, which can be updated via USB on the controller if necessary.

Due to its compact size, the Xsarius Apollo Flat is easy to carry and set up anywhere.

Key Features:

• Very powerful and silent motor
• Antenna locking and positioning system
• Well-developed mechanism for durability
• Innovative controller with LCD screen and USB port
• HD search technology with three preprogrammed frequencies per satellite
• Compact and portable design

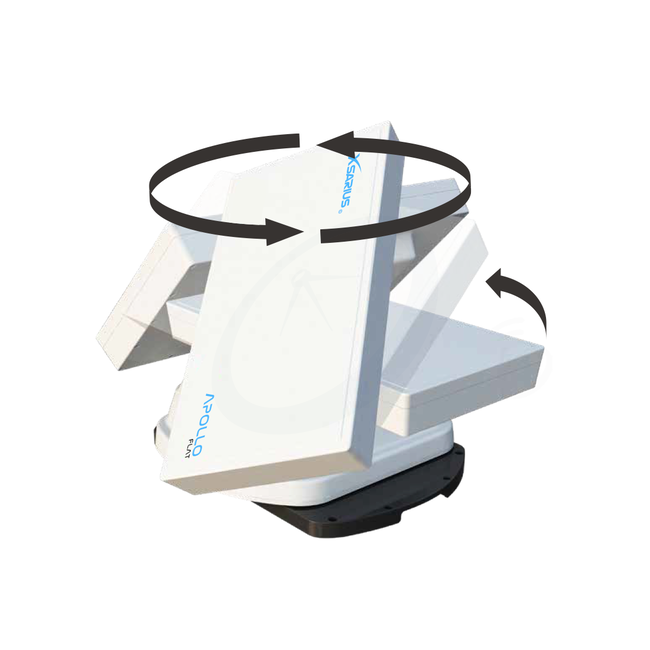

• Auto Skew function for optimal skew settings
• Portable and mountable with included mounting kit
• Supports 9 preprogrammed satellites with the ability to install 2 more
• Built-in GPS support for faster position determination
• Comes with 3-year warranty

Specifications:

• Frequency Range: 10.7 ~ 12.75GHz
• Polarization: Horizontal/Vertical
• Dimensions: 515355201mm
• Weight: 12kg
• Minimum EIRP: 50 dBW
• Rotation Range: 15 - 90/360/-45 ~ +45
• Minimum Search Time: 120 seconds (average)
• LNB Output: 1 Output
• Output Frequency Range: 950 ~ 2,150 MHz
• L.O. Frequency: 9.75/10.6GHz
• Operating Temperature: -30 ~ +60
• Input Voltage: DC12 ~ 24V
• Power Consumption During Search: 30W

Package Contents:

• 1 x Xsarius Apollo Flat
• 1 x Mounting Plate
• 1 x Power Cable with Cigarette Plug
• 1 x 12M Receiver Cable
• 1 x Control Panel
• 1 x Control Panel Bracket
• 1 x 12M Control Cable
• 1 x Carrying Case
• 1 x Cable Holder
• 1 x Cable Gland
• 1 x Allen Key
• 1 x User Manual
• 1 x Power Adapter (Optional, available separately)
